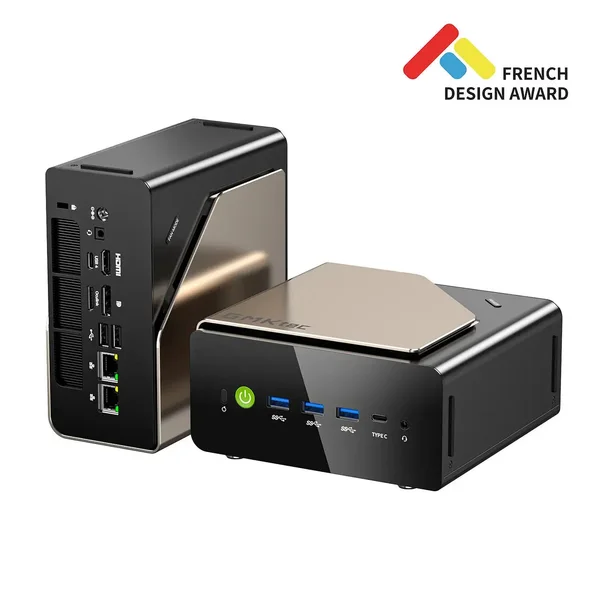

GMKtec EVO-T1

GMKtecMini PC reference

GMKtec EVO-T1

GMKtec EVO-T1 is a compact option for development, content work and local AI experiments using Intel Core Ultra 9 285H and integrated Intel Arc 140T graphics. Software support and the memory required by a particular model matter more than theoretical AI ratings. Replaceable SO-DIMM memory gives it a path for later RAM upgrades. OCuLink allows a separate compatible external GPU dock; connect or disconnect it only with the PC powered off.

Processor
Intel Core Ultra 9 285H
Graphics
Intel Arc 140T
Memory
32 GB
Storage
1 TB
Configuration being compared32 GB RAM · 1 TB SSDNew
US stores · USD

Prices across stores

MiniPC.guru compares retailer listings. Purchases are completed on the retailer’s website.

View price history
RetailerAvailabilityListed priceLast checkedRetailer website
In stock$1,279.99Lowest checkedView at GMKtec
In stock$1,279.99Sold by GMKtec-DirectLowest checkedView at Amazon

Availability reflects the latest store check. Shipping, tax, coupons and checkout totals are not included; confirm them at the store.

Specifications

Processor, graphics and installed memory/storage describe the selected configuration. Expansion limits and connectivity describe the model; optional hardware is identified separately. References are collected in About this data below.

Processor
Intel Core Ultra 9 285H
Graphics
Intel Arc 140T
Memory
32 GB
Storage
1 TB
Ports & displays
3 × USB-A 3.2 Gen 2 (10Gbps), 2 × USB-A 2.0; front USB-C 3.2 Gen 2 (data, DP, PD), rear USB4; HDMI 2.1 (up to 8K/60Hz or 4K/144Hz), DisplayPort 1.4; OCuLink PCIe 4.0 ×4; 2 × 2.5GbE; 2 × 3.5mm audio jacks; DC input. Four display outputs are advertised. OCuLink is not hot-pluggable.
Ethernet, Wi-Fi & Bluetooth
Wi-Fi 6 (Intel AX201, up to 2.4Gbps); Bluetooth 5.2; Dual 2.5G Ethernet LAN (Realtek 8125BG) Link rates are theoretical, not measured throughput.
RAM & storage upgrades
2 × DDR5 SO-DIMM Slots; Dual-Channel DDR5-5600 memory; maximum 128GB. 3 × M.2 2280 PCIe 4.0 ×4 SSD Slots; Supports up to 8TB per slot (Max 24TB)
Power supply & power limits
Power supply / DC input rating: DC Power Adapter 19V / 7.8A, 148.2W. This is a supply rating, not measured wall-power consumption.
Dimensions & weight
154 × 151 × 73.6 mm. Dimensions follow the manufacturer order; axes are not labeled.

Video

Plays on YouTube. Nothing is loaded from YouTube until you press play. YouTube

What owners say

Three things are repeated about this machine everywhere and none of them survives its own sources. It is called quiet: the only laboratory that measured it recorded 51.6 dB(A) under load and 38.8 at idle, both worse than a rival carrying the same processor. It is praised for low interrupt latency: it places third of six in the very table that claim comes from, behind that same rival. It is called frugal: it draws 12 to 15 W at idle where the rival draws 4.5. What it genuinely does better is hold on. Where the other machine starts losing speed on the third pass of a repeated benchmark, this one keeps going and peaks at 84 °C, because its sustained power limit is 70 W against 33. On a Blender render that is a quarter less time. It also has the better expansion: OCuLink at PCIe 4.0 by four lanes rather than graphics over USB4 alone. Two warnings. Its wireless is Wi-Fi 6 with no 6 GHz band, on a machine of this price and year. And the maker's own page still advertises a 32-billion-parameter model running at about 15 tokens per second with 64 GB of memory, a configuration it no longer sells.

For whom
Sustained work such as rendering, compiling and long encodes, with an external graphics card over OCuLink.
Not for
A quiet desk or a low electricity bill, and anyone who needs a current wireless standard.

Our own summary of 5 published sources, reviewed Sep 17, 2026. We have not tested this Mini PC ourselves; the sources are listed under About this data.

Performance

No reviewed results yetFPS

A fixed game, build, benchmark scene, graphics preset and upscaling setting must be specified before publishing results.

Price history

GMKtec EVO-T1 · 32 GB RAM · 1 TB SSD

Loading checks…

New condition · US stores · USD · Selected configuration only. Prices exclude shipping and tax. Each price stays on the chart until that listing's next check, for at most 36 hours, the same window the store prices use. Out-of-stock, failed and missing checks leave gaps.

About this data6 references

Specs and any benchmark results come from the sources below. We haven't tested this Mini PC ourselves.

Sources

  1. GMKtec EVO-T1 — manufacturer specifications ↗
    • Manufacturer / specification source
    • Ports & displays · Reviewed Sep 12, 2026
    • Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 12, 2026
    • RAM & storage upgrades · Reviewed Sep 12, 2026
    • Power supply & power limits · Reviewed Sep 12, 2026
    • Dimensions & weight · Reviewed Sep 12, 2026
    • Owner review source · Reviewed Sep 17, 2026
  2. Selected configuration ↗
    • Selected configuration
  3. GMKtec EVO-T1 review: Intel Core Ultra 9 285H, 80 W TDP and an eGPU option ↗
    • Owner review source · Reviewed Sep 17, 2026
  4. GMKtec EVO-T1 mini PC review ↗
    • Owner review source · Reviewed Sep 17, 2026
  5. GMKtec EVO-T1 review: the strongest Arrow Lake mini PC tested ↗
    • Owner review source · Reviewed Sep 17, 2026
  6. GMKtec EVO-T1 mini PC review with Intel Core Ultra 9 ↗
    • Owner review source · Reviewed Sep 17, 2026
