MINISFORUMMini PC reference

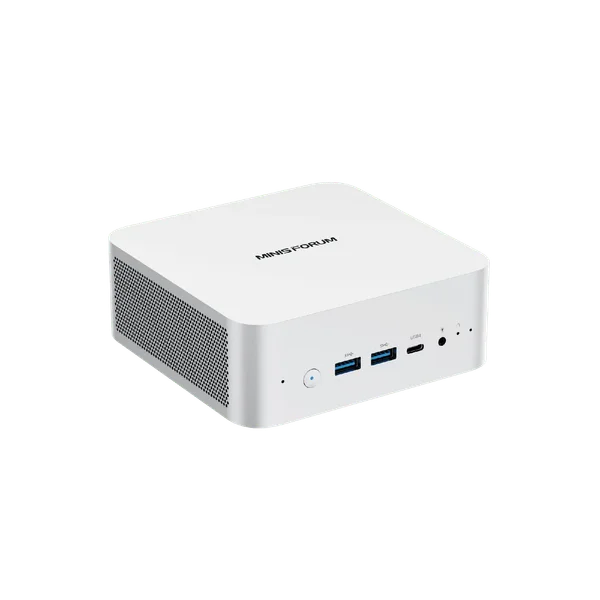

MINISFORUM M1 Pro (285H)
MINISFORUM M1 Pro (285H) uses Intel Core Ultra 9 285H with Intel Arc 140T. USB4, OCuLink and two NVMe slots provide several expansion routes for a small creative or developer workstation. Real rendering and gaming performance depends on the application, memory setup and chosen power mode.
- Processor
- Intel Core Ultra 9 285H
- Graphics
- Intel Arc 140T
- Memory
- 32 GB
- Storage
- 1 TB
Prices across stores
MiniPC.guru compares retailer listings. Purchases are completed on the retailer’s website.
| Retailer | Availability | Listed price | Last checked | Retailer website |
|---|---|---|---|---|
 Sold by MINISFORUM Official | In stock | $1,039 | View at Newegg | |
 | Not confirmed | —Check expired | View at MINISFORUM |
Availability reflects the latest store check. Shipping, tax, coupons and checkout totals are not included; confirm them at the store.
Specifications
Processor, graphics and installed memory/storage describe the selected configuration. Expansion limits and connectivity describe the model; optional hardware is identified separately. References are collected in About this data below.
- Processor
- Intel Core Ultra 9 285H
- Graphics
- Intel Arc 140T
- Memory
- 32 GB
- Storage
- 1 TB
- Ports & displays
- Two USB-A 3.2 Gen 2, one USB-A 2.0, two USB4 40Gbps Type-C, HDMI 2.1, DisplayPort 1.4 and a 3.5 mm headset jack. OCuLink connector.
- Ethernet, Wi-Fi & Bluetooth
- One 2.5GbE RJ45 (Intel I226-V), Wi-Fi 7 (Intel BE200) and Bluetooth 5.4.
- RAM & storage upgrades
- Two DDR5 SO-DIMM slots, up to 6400 MT/s and 128 GB. Two M.2 2280 PCIe 4.0 x4 NVMe SSD slots, the manufacturer lists up to 4 TB without clearly distinguishing a per-drive versus combined maximum.
- Power supply & power limits
- 120 W external adapter (19 V / 6.32 A). This is rated adapter output, not a measured wall-power result.
- Dimensions & weight
- 128 × 126 × 52 mm; approximately 0.6 kg.
Performance
A fixed game, build, benchmark scene, graphics preset and upscaling setting must be specified before publishing results.
Price history
MINISFORUM M1 Pro (285H) · 32 GB RAM · 1 TB SSD
Loading checks…
New condition · US stores · USD · Selected configuration only. Chart prices exclude shipping and tax. Missing or failed checks leave gaps.
About this data2 references
Specs and any benchmark results come from the sources below. We haven't tested this Mini PC ourselves.
Notes
- The manufacturer 4 TB SSD maximum is ambiguous between per-drive and combined capacity; a per-drive ceiling is not established.
Sources
- MINISFORUM M1 Pro (285H) — manufacturer specifications ↗
- Manufacturer / specification source
- Ports & displays · Reviewed Sep 15, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 15, 2026
- RAM & storage upgrades · Reviewed Sep 15, 2026
- Power supply & power limits · Reviewed Sep 15, 2026
- Dimensions & weight · Reviewed Sep 15, 2026
- Selected configuration ↗
- Selected configuration
