ASUSMini PC reference

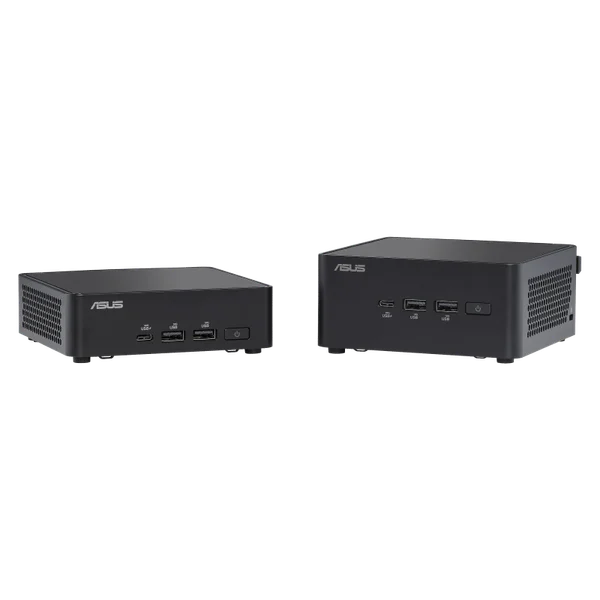

ASUS NUC 14 Pro (125H)
ASUS NUC 14 Pro (125H) pairs Intel Core Ultra 5 125H with Intel Arc Graphics for compact desktop workloads. This profile is a barebone kit: memory, storage and an operating system must be supplied separately. Thunderbolt and dual display outputs support a peripheral-rich workspace. Slim and tall chassis are sold separately; confirm the chassis before planning drive expansion.
- Processor
- Intel Core Ultra 5 125H
- Graphics
- Intel Arc Graphics
- Memory
- Not included
- Storage
- Not included
Prices across stores
MiniPC.guru compares retailer listings. Purchases are completed on the retailer’s website.
We may earn a commission if you buy through affiliate links.
| Retailer | Availability | Listed price | Last checked | Retailer website |
|---|---|---|---|---|
![]() | In stock | $675Sold by eCommerce Central Hub | View at Amazon | |
Sold by Hot Deals 4 LessAffiliate link | Not confirmed | See at storeCheck failed | View at Newegg | |
| Not confirmed | See at store | No automatic check | View at B&H Photo Video | |
| Not confirmed | See at storeCheck expired | View at Electromaker | ||
![]() | Not confirmed | See at storeCheck expired | View at IP Security Depot |
Availability reflects the latest store check. Shipping, tax, coupons and checkout totals are not included; confirm them at the store.
Specifications
Processor, graphics and installed memory/storage describe the selected configuration. Expansion limits and connectivity describe the model; optional hardware is identified separately. References are collected in About this data below.
- Processor
- Intel Core Ultra 5 125H
- Graphics
- Intel Arc Graphics
- Memory
- Not included
- Storage
- Not included
- Ports & displays
- 3 × USB-A 10Gbps, 1 × USB-A 2.0, 2 × HDMI 2.1 TMDS and 2 × Thunderbolt 4 Type-C with DisplayPort output. Additional front USB-C 20Gbps. ASUS documents disagree on the DisplayPort version; no version-specific capability is assumed here.
- Ethernet, Wi-Fi & Bluetooth
- 1 × Intel 2.5GbE RJ45; Intel AX211 Wi-Fi 6E and Bluetooth 5.3.
- RAM & storage upgrades
- 2 × DDR5-5600 SO-DIMM, up to 96 GB. M.2 2280 PCIe 4.0 x4 SSD (ASUS lists up to 4 TB) and M.2 2242 PCIe 4.0 x4 SSD. The documented 2242 capacity differs for tall kits; confirm the exact kit before choosing a drive. Tall kits also have a 2.5-inch SATA connection. RAM and SSD are not included; Intel Arc graphics requires both memory slots populated.
- Power supply & power limits
- 120 W external adapter; rated output, not measured electricity use.
- Dimensions & weight
- 117 × 112 × 37 mm (W × D × H) for slim kits; 117 × 112 × 54 mm for tall kits. The catalog CPU profile does not identify the chassis variant.
What owners say
Two labs had this exact Core Ultra 5 125H kit, both as a barebone, and owners add what happens when it runs as a server. The labs agree on the headline: very low idle power, about 5 W at the wall, and a machine that cannot hold its settings under a long full load. ASUS lets the chip run at 65 W for both limits; one lab saw it touch 111 °C and throttle, the other found repeated runs inconsistent as the cooler ran out of headroom, with parts of the top reaching 55 °C. On noise they split at idle — one could not hear it at all, the other found the fan never stops — but both call it clearly audible at full load, 47.8 dB(A) in one measurement. Building it is easy: the base comes off with a turn of a lock and no tools, thermal pads on the lid cool the SSDs, and both memory slots should be filled, up to 2 × 48 GB. There is no audio jack, only sound over HDMI and DisplayPort. One Proxmox owner's unit freezes an hour or two after booting without a monitor attached, and ASUS's suggested fix is a dummy display plug; another owner found a Debian 12 kernel too old for the graphics.
- For whom
- An efficient, easily upgraded office PC or home server with two Thunderbolt 4 ports and support for four displays.
- Not for
- Long rendering, photo or video jobs, games beyond light titles, and headless servers until the monitor-less freezes are resolved.
Our own summary of 4 published sources, reviewed Sep 23, 2026. We have not tested this Mini PC ourselves; the sources are listed under About this data.
Performance
Same Procyon Office Productivity version, application versions and power profile.
Price history
ASUS NUC 14 Pro (125H) · Barebone · RAM & SSD not included
Loading checks…
New condition · US stores · USD · Selected configuration only. Prices exclude shipping and tax. Each price stays on the chart until that listing's next check, for at most 36 hours, the same window the store prices use. Out-of-stock, failed and missing checks leave gaps.
About this data6 references
Specs and any benchmark results come from the sources below. We haven't tested this Mini PC ourselves.
Notes
- Measured wall power, acoustic measurements and configuration-matched benchmark results remain unverified.
- The CPU-level catalog ID does not select a slim or tall chassis. Dimensions and chassis-dependent storage are stated as alternatives, not as simultaneously installed features.
- The ASUS US web table specifies DisplayPort 1.4 over Thunderbolt 4, but the NUC 14 Pro datasheet specifies 2.1. The connector is confirmed; version-specific capabilities remain unverified for the selected kit.
- For the M.2 2242 SSD, ASUS lists up to 2 TB for slim kits. The US web table lists 1 TB for tall kits, while the kit datasheet lists 2 TB. No single tall-kit maximum is asserted here.
Sources
- ASUS NUC 14 Pro (125H) — manufacturer specifications ↗
- Manufacturer / specification source
- Selected configuration
- Ports & displays · Reviewed Sep 15, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 15, 2026
- RAM & storage upgrades · Reviewed Sep 15, 2026
- Power supply & power limits · Reviewed Sep 15, 2026
- Dimensions & weight · Reviewed Sep 15, 2026
- ASUS NUC 14 Pro — official datasheet, kit specifications ↗
- Ports & displays · Reviewed Sep 15, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 15, 2026
- RAM & storage upgrades · Reviewed Sep 15, 2026
- Power supply & power limits · Reviewed Sep 15, 2026
- Dimensions & weight · Reviewed Sep 15, 2026
- Asus NUC 14 Pro review: NUC mini PC with Intel Core Ultra 5 125H, fast Intel Arc iGPU and 2x Thunderbolt 4 ↗
- Owner review source · Reviewed Sep 23, 2026
- Effizienz und leise: ASUS NUC 14 Pro im Test ↗
- Owner review source · Reviewed Sep 23, 2026
- [SOLVED] LMDE 6 on an ASUS NUC 14 Pro 125H: stuck with screen resolution 800x600 ↗
- Owner review source · Reviewed Sep 23, 2026
- NUC 14 Pro freezes when running headless ↗
- Owner review source · Reviewed Sep 23, 2026
