ASUSMini PC reference

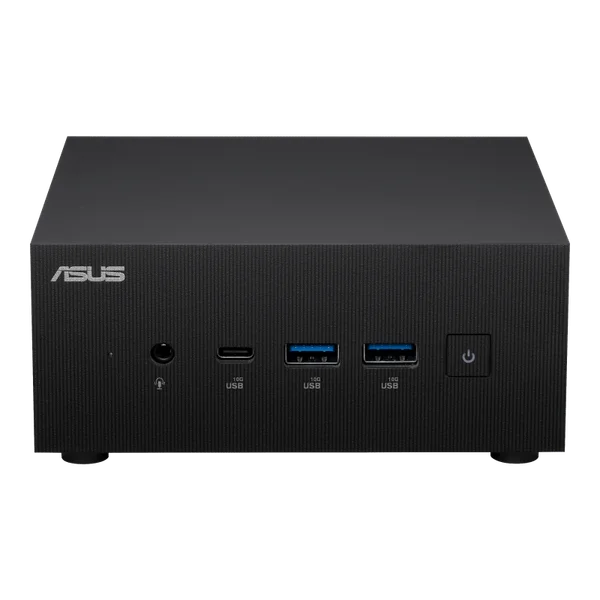

ASUS ExpertCenter PN65 (125H)
ASUS ExpertCenter PN65 (125H) pairs Intel Core Ultra 5 125H with Intel Arc Graphics for compact desktop workloads. This profile is a barebone kit: memory, storage and an operating system must be supplied separately. Two memory slots and multiple internal drives leave room for a larger office or development setup. Populate both memory channels for its Intel Arc graphics.
- Processor
- Intel Core Ultra 5 125H
- Graphics
- Intel Arc Graphics
- Memory
- Not included
- Storage
- Not included
Prices across stores
MiniPC.guru compares retailer listings. Purchases are completed on the retailer’s website.
We may earn a commission if you buy through affiliate links.
| Retailer | Availability | Listed price | Last checked | Retailer website |
|---|---|---|---|---|
 | In stock | $599Lowest checked | View at Vision Computers | |
NextWarehouse | In stock | $599.63 | View at NextWarehouse | |
 | In stock | $644.34 | View at Westend IT Store | |
 Affiliate link | Not confirmed | See at storeCheck failed | View at Newegg | |
 | Not confirmed | See at store | No automatic check | View at AVADirect |
 | Out of stock | $604 | View at eSaitech | |
 | Out of stock | $610.28 | View at COLAMCO | |
 | Out of stock | $726.13 | View at PCNation |
Availability reflects the latest store check. Shipping, tax, coupons and checkout totals are not included; confirm them at the store.
Specifications
Processor, graphics and installed memory/storage describe the selected configuration. Expansion limits and connectivity describe the model; optional hardware is identified separately. References are collected in About this data below.
- Processor
- Intel Core Ultra 5 125H
- Graphics
- Intel Arc Graphics
- Memory
- Not included
- Storage
- Not included
- Ports & displays
- 2 × USB-C 10Gbps (rear supports DisplayPort 1.4 and power input), 3 × USB-A 10Gbps, 2 × USB 2.0, 2 × HDMI 2.1 (4K/60Hz), headset jack and optional configurable rear port.
- Ethernet, Wi-Fi & Bluetooth
- 1 × 2.5GbE RJ45 as standard; a second 2.5GbE port is a configurable option. Intel Wi-Fi 7 with Bluetooth 5.4 is a US-supported option, alongside Wi-Fi 6/6E modules in the product guide. Confirm the installed wireless module by exact kit SKU; Wi-Fi 7 is not guaranteed by the CPU model alone.
- RAM & storage upgrades
- 2 × DDR5-5600 SO-DIMM, up to 96 GB (2 × 48 GB). Barebone supports 2 × M.2 2280 PCIe 4.0 x4 SSDs (ASUS lists up to 2 TB each) plus a 2.5-inch SATA drive. RAM/SSD are not included. Intel Arc graphics requires both memory slots populated.
- Power supply & power limits
- 120 W external adapter. The US page lists 19 V / 6.32 A, while the product guide lists 20 V / 6 A; confirm the exact kit and adapter label before replacement. Rated output is not measured electricity use.
- Dimensions & weight
- 120 × 130 × 58 mm (W × D × H).
What owners say
One lab reviewed the PN65 with the Core Ultra 5 125H in depth and a single verified buyer adds a warning, so this is a thinner basis than most. The lab measured it in a semi-anechoic chamber: effectively silent at idle at 18.8 dB(A), and 36.6 dB(A) at full processor load, an even sound without sharp peaks, with only moderate case heating after a long load. It draws 9 W at idle and about 50 W at full load. The complete systems ship with a single 16 GB stick, and Intel Arc graphics only switches on with a second module, so a second stick is mandatory; the bundled Micron 2400 is a budget QLC drive. The lab's advice is to buy the barebone and fit two memory modules and a better SSD. Both M.2 slots now sit on one board, so there is no fragile flex cable as on the PN64, and a 2.5-inch SATA drive fits with a cable supplied loose in the box. There is no Thunderbolt; every USB port tops out at 10 Gbps. Wi-Fi 7 is advertised, but the reviewed unit had Wi-Fi 6E. The 120 W adapter is nearly as big as the PC. The verified buyer's barebone had erratic video output and went back for a replacement.
- For whom
- A quiet office PC bought as a barebone and fitted with two memory sticks and a good SSD.
- Not for
- Anyone who needs Thunderbolt, or who would run it on the single memory stick of the complete systems.
Our own summary of 2 published sources, reviewed Sep 23, 2026. We have not tested this Mini PC ourselves; the sources are listed under About this data.
Performance
Same Procyon Office Productivity version, application versions and power profile.
Price history
ASUS ExpertCenter PN65 (125H) · Barebone · RAM & SSD not included
Loading checks…
New condition · US stores · USD · Selected configuration only. Prices exclude shipping and tax. Each price stays on the chart until that listing's next check, for at most 36 hours, the same window the store prices use. Out-of-stock, failed and missing checks leave gaps.
About this data4 references
Specs and any benchmark results come from the sources below. We haven't tested this Mini PC ourselves.
Notes
- Measured wall power, acoustic measurements and configuration-matched benchmark results remain unverified.
- Confirm optional rear port and wireless card against the exact retail SKU.
- The PN65 US page and product guide agree on 120 W but differ on adapter voltage/current. No single replacement-adapter voltage is asserted.
Sources
- ASUS ExpertCenter PN65 (125H) — manufacturer specifications ↗
- Manufacturer / specification source
- Selected configuration
- Ports & displays · Reviewed Sep 15, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 15, 2026
- RAM & storage upgrades · Reviewed Sep 15, 2026
- Power supply & power limits · Reviewed Sep 15, 2026
- Dimensions & weight · Reviewed Sep 15, 2026
- ASUS NUC / Mini PC product guide 2025 — PN64 / PN65 tables, PDF page 32 ↗
- Ports & displays · Reviewed Sep 15, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 15, 2026
- RAM & storage upgrades · Reviewed Sep 15, 2026
- Power supply & power limits · Reviewed Sep 15, 2026
- Dimensions & weight · Reviewed Sep 15, 2026
- Обзор мини-ПК Asus ExpertCenter PN65 на процессоре Intel Core Ultra 5 125H ↗
- Owner review source · Reviewed Sep 23, 2026
- ASUS ExpertCenter PN65 Barebone (PN65-BB5000ETL-NL) customer review 'Disappointment' ↗
- Owner review source · Reviewed Sep 23, 2026
