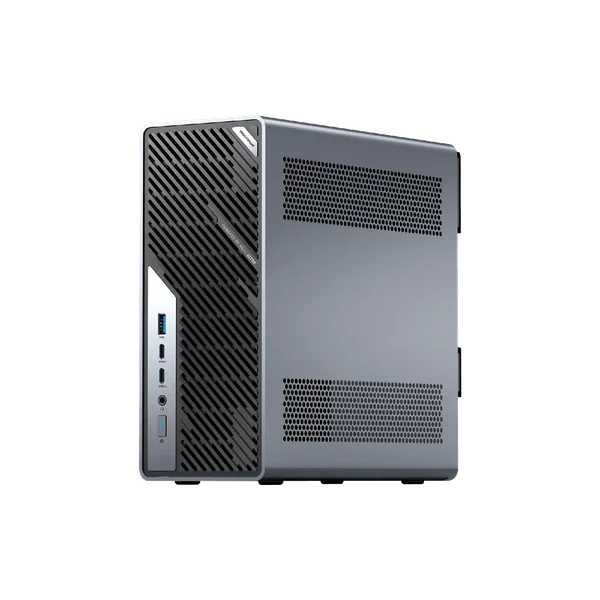

MINISFORUM MS-02 Ultra (275HX)
MINISFORUM MS-02 Ultra (275HX) uses Intel Core Ultra 9 275HX with Intel Graphics. A larger compact workstation for PCIe expansion, virtualization and network-heavy tasks. NIC, ECC memory and SSD expansion differ between standard and NS packages, so a matching CPU alone is not enough to compare configurations.
- Processor
- Intel Core Ultra 9 275HX
- Graphics
- Intel Graphics
- Memory
- 32 GB
- Storage
- 1 TB
Prices across stores
MiniPC.guru compares retailer listings. Purchases are completed on the retailer’s website.
| Retailer | Availability | Listed price | Last checked | Retailer website |
|---|---|---|---|---|
 | Out of stock | $1,549 | View at MINISFORUM |
Availability reflects the latest store check. Shipping, tax, coupons and checkout totals are not included; confirm them at the store.
Specifications
Processor, graphics and installed memory/storage describe the selected configuration. Expansion limits and connectivity describe the model; optional hardware is identified separately. References are collected in About this data below.
- Processor
- Intel Core Ultra 9 275HX
- Graphics
- Intel Graphics
- Memory
- 32 GB
- Storage
- 1 TB
- Ports & displays
- Two front USB4 v2 80Gbps Type-C, one rear USB4 40Gbps Type-C, four USB-A 10Gbps, HDMI 2.1 FRL and a 3.5 mm combo jack.
- Ethernet, Wi-Fi & Bluetooth
- One 10GbE RJ45, one 2.5GbE RJ45, Wi-Fi 7 (Intel BE200) and Bluetooth 5.4. A 25GbE expansion NIC depends on the purchased variant.
- RAM & storage upgrades
- Four non-ECC DDR5 SO-DIMM slots, manufacturer-listed up to 256 GB. Two onboard M.2 2280 PCIe 4.0 x4 slots, up to 8 TB each. PCIe 5.0 x16, PCIe 4.0 x16 (x4+x4+x4) and PCIe 4.0 x4 expansion. Additional NIC-mounted SSD slots are not included by the base specification.
- Power supply & power limits
- Internal PSU rated up to 350 W, 100–240 V AC input. This is supply capacity, not measured consumption.
- Dimensions & weight
- 221.5 × 97 × 225 mm for the MS-02 Ultra chassis, as reported in TechRadar's 285HX review; weight varies with the fitted expansion hardware.
Performance
Same protocol, network, client, file size, drives and cache settings.
Price history
MINISFORUM MS-02 Ultra (275HX) · 32 GB RAM · 1 TB SSD
Loading checks…
New condition · US stores · USD · Selected configuration only. Chart prices exclude shipping and tax. Missing or failed checks leave gaps.
About this data4 references
Specs and any benchmark results come from the sources below. We haven't tested this Mini PC ourselves.
Sources
- MINISFORUM MS-02 Ultra (275HX) — manufacturer specifications ↗
- Manufacturer / specification source
- Ports & displays · Reviewed Sep 15, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 15, 2026
- RAM & storage upgrades · Reviewed Sep 15, 2026
- Power supply & power limits · Reviewed Sep 15, 2026
- Selected configuration ↗
- Selected configuration
- MINISFORUM — MS-02 Ultra product specifications ↗
- RAM & storage upgrades · Reviewed Sep 15, 2026
- TechRadar — MS-02 Ultra hands-on review ↗
- Dimensions & weight · Reviewed Sep 15, 2026
