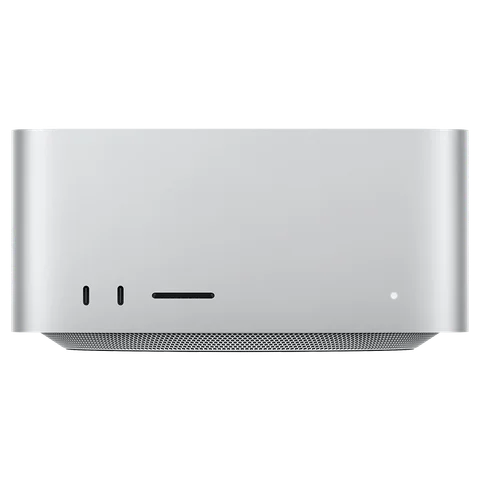

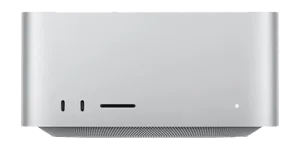

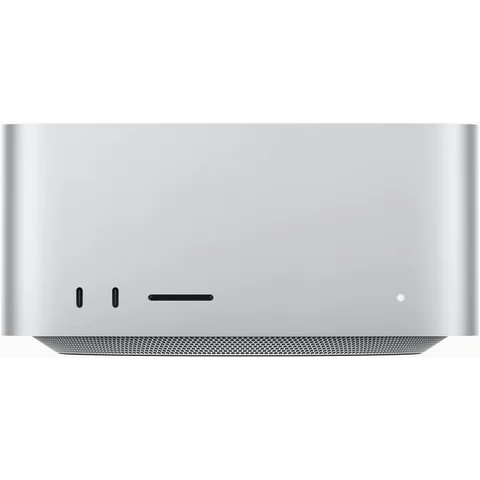

Apple Mac Studio M5 Max 40-core GPU (2026)
The 40-core GPU version of the 2026 Mac Studio M5 Max pairs an 18-core CPU with a 16-core Neural Engine and 614 GB/s of unified-memory bandwidth. Dedicated video engines handle H.264, HEVC and ProRes, with AV1 decoding also supported. The four rear Thunderbolt 5 ports, 10Gb Ethernet and support for up to five external displays serve media production and large external-storage setups.
- Processor
- Apple M5 Max (18-core CPU)
- Graphics
- Apple M5 Max (40-core GPU)
- Memory
- 64 GB
- Storage
- 1 TB
Prices across stores
MiniPC.guru compares retailer listings. Purchases are completed on the retailer’s website.
| Retailer | Availability | Listed price | Last checked | Retailer website |
|---|---|---|---|---|
 | Not confirmed | See at store | No automatic check | View at B&H Photo Video |
Availability reflects the latest store check. Shipping, tax, coupons and checkout totals are not included; confirm them at the store.
Specifications
Processor, graphics and installed memory/storage describe the selected configuration. Expansion limits and connectivity describe the model; optional hardware is identified separately. References are collected in About this data below.
- Processor
- Apple M5 Max (18-core CPU)
- Graphics
- Apple M5 Max (40-core GPU)
- Memory
- 64 GB
- Storage
- 1 TB
- Ports & displays
- Rear: 4 × Thunderbolt 5 (up to 120Gbps), 2 × USB-A 5Gbps, HDMI 2.1, 10Gb Ethernet and a 3.5 mm headphone jack. Front: 2 × USB-C 10Gbps and a UHS-II SDXC card reader.
- Ethernet, Wi-Fi & Bluetooth
- 10GbE RJ45 with 1/2.5/5/10Gbps support; Apple N1 wireless chip with Wi-Fi 7, Bluetooth 6 and Thread networking.
- RAM & storage upgrades
- This 18-core CPU / 40-core GPU chip has 48, 64 and 128 GB unified-memory ordering options. This catalog configuration is 64 GB / 1 TB. Apple lists SSD options up to 8 TB. Memory is selected at purchase; external storage connects through Thunderbolt or USB.
- Power supply & power limits
- Apple specifies 480 W maximum continuous power and 100–240 V AC input at 50–60 Hz. This is an electrical rating, not measured idle or workload consumption.
- Dimensions & weight
- 197 × 197 × 95 mm (W × D × H); Apple-listed weight 2.7 kg.
What owners say
The accounts of this 40-core GPU version include everyday development and tests that make its cooling audible. A MacRumors owner identifies the exact 18-core CPU/40-core GPU, 64 GB/1 TB configuration and heard its fans clearly during a Cinebench test. Wayne Dixon independently bought the same chip and 64 GB of memory, but with a 4 TB SSD, to replace his M1 Max Studio. His own development projects built noticeably sooner, while x265 encoding made the fans audible. That is evidence about his projects and workload, not a promise that every application gains by the same amount. He chose the larger memory and storage capacities intending to keep the machine for several years, and started with a clean installation instead of migrating old files. A Reddit owner of the exact 64 GB/1 TB version also values the internal-storage upgrade. Its published test image does not establish the behaviour of the 4 TB drive or another capacity. The common lesson is to choose the configuration around sustained work and storage needs, with fan noise under prolonged load included in the expectations. These first-week reports do not yet tell us how the model ages.
- For whom
- Developers and creative professionals who need 64 GB and the stronger M5 Max GPU for regular sustained work.
- Not for
- Buyers requiring inaudible fans under prolonged work.
Our own summary of 3 published sources, reviewed Sep 30, 2026. We have not tested this Mini PC ourselves; the sources are listed under About this data.
Performance
Same application version, scene, samples, resolution and CPU or GPU render backend.
Price history
Apple Mac Studio M5 Max 40-core GPU (2026) · 64 GB RAM · 1 TB SSD
Loading checks…
New condition · US stores · USD · Selected configuration only. Prices exclude shipping and tax. Each price stays on the chart until that listing's next check, for at most 36 hours, the same window the store prices use. Out-of-stock, failed and missing checks leave gaps.
About this data5 references
Specs and any benchmark results come from the sources below. We haven't tested this Mini PC ourselves.
Notes
- Configuration-matched benchmarks, render times, noise and workload power measurements remain unverified.
- Retailer links identify the hardware configuration; they do not provide an observed catalog price. B&H availability must be checked on the listing before ordering.
- B&H listed the 64 GB / 1 TB configuration as preorder / coming soon when reviewed on September 30, 2026.
Sources
- Mac Studio (2026) — Apple technical specifications ↗
- Manufacturer / specification source
- Ports & displays · Reviewed Sep 30, 2026
- Ethernet, Wi-Fi & Bluetooth · Reviewed Sep 30, 2026
- RAM & storage upgrades · Reviewed Sep 30, 2026
- Power supply & power limits · Reviewed Sep 30, 2026
- Dimensions & weight · Reviewed Sep 30, 2026
- Apple US configurator — 18-core CPU / 40-core GPU ↗
- Selected configuration
- RAM & storage upgrades · Reviewed Sep 30, 2026
- M5 Max Mac Studio impressions: EDS66's 18/40/64 GB/1 TB unit ↗
- Owner review source · Reviewed Sep 30, 2026
- A Review of the M5 Max Mac Studio ↗
- Owner review source · Reviewed Sep 30, 2026
- M5 Max Mac Studio 40-core GPU, 64 GB memory, 1 TB SSD ↗
- Owner review source · Reviewed Sep 30, 2026
